Redilight Skyfixture™

Redilight’s range of LED Skyfixture™ (Solar LED Light Fittings) were designed with emphasis on both aesthetics and performance.
When combining a superior finish with the exceptional output of Redilights high quality SMD LED’s you have a light that lasts for many years suiting almost any application.
Our unrivaled quality and industry leading 7 Year Warranty means you have many years of energy efficient, trouble free light.

6 WATT ROUND RECESSED LIGHT FITTING

APPEARANCE

WATTAGE

6 watt

LUMENS

600lm ~ 700lm

DIMENSIONS

Ø109.5mm x H40.5mm

Data Sheet

HOLE CUT-OUT

Ø90mm

SUITABLE AREA

4m2

COLOUR TEMPERATURE

3000k (warm white)

5000k (cool white)

6 WATT SQUARE RECESSED LIGHT FITTING

APPEARANCE

WATTAGE

6 watt

LUMENS

600lm ~ 700lm

DIMENSIONS

L109.5mm x W109.5mm x H42mm

Data Sheet

HOLE CUT-OUT

L90mm x W90mm

SUITABLE AREA

4m2

COLOUR TEMPERATURE

3000k (warm white)

5000k (cool white)

12 WATT ROUND RECESSED LIGHT FITTING

APPEARANCE

WATTAGE

12 watt

LUMENS

1100lm ~ 1200lm

DIMENSIONS

Ø225mm x H40.5mm

Data Sheet

HOLE CUT-OUT

Ø200mm

SUITABLE AREA

8m2

COLOUR TEMPERATURE

3000k (warm white)

5000k (cool white)

24 WATT SQUARE RECESSED LIGHT FITTING

APPEARANCE

WATTAGE

24 watt

LUMENS

2500lm ~ 2800lm

DIMENSIONS

L330mm x W330mm x H45.5mm

Data Sheet

HOLE CUT-OUT

L300mm x W300mm

SUITABLE AREA

16m2

COLOUR TEMPERATURE

3000k (warm white)

5000k (cool white)

24 WATT ROUND RECESSED LIGHT FITTING

APPEARANCE

WATTAGE

24 watt

LUMENS

2500lm ~ 2800lm

DIMENSIONS

Ø330mm x H45.5mm

Data Sheet

HOLE CUT-OUT

Ø300mm

SUITABLE AREA

16m2

COLOUR TEMPERATURE

3000k (warm white)

5000k (cool white)

24 WATT ROUND SLIMLINE SURFACE MOUNT LIGHT FITTING

APPEARANCE

WATTAGE

24 watt

LUMENS

2500lm ~ 2800lm

DIMENSIONS

Ø330mm x H40.5mm

Data Sheet

HOLE CUT-OUT

N/A

SUITABLE AREA

16m2

COLOUR TEMPERATURE

3000k (warm white)

5000k (cool white)

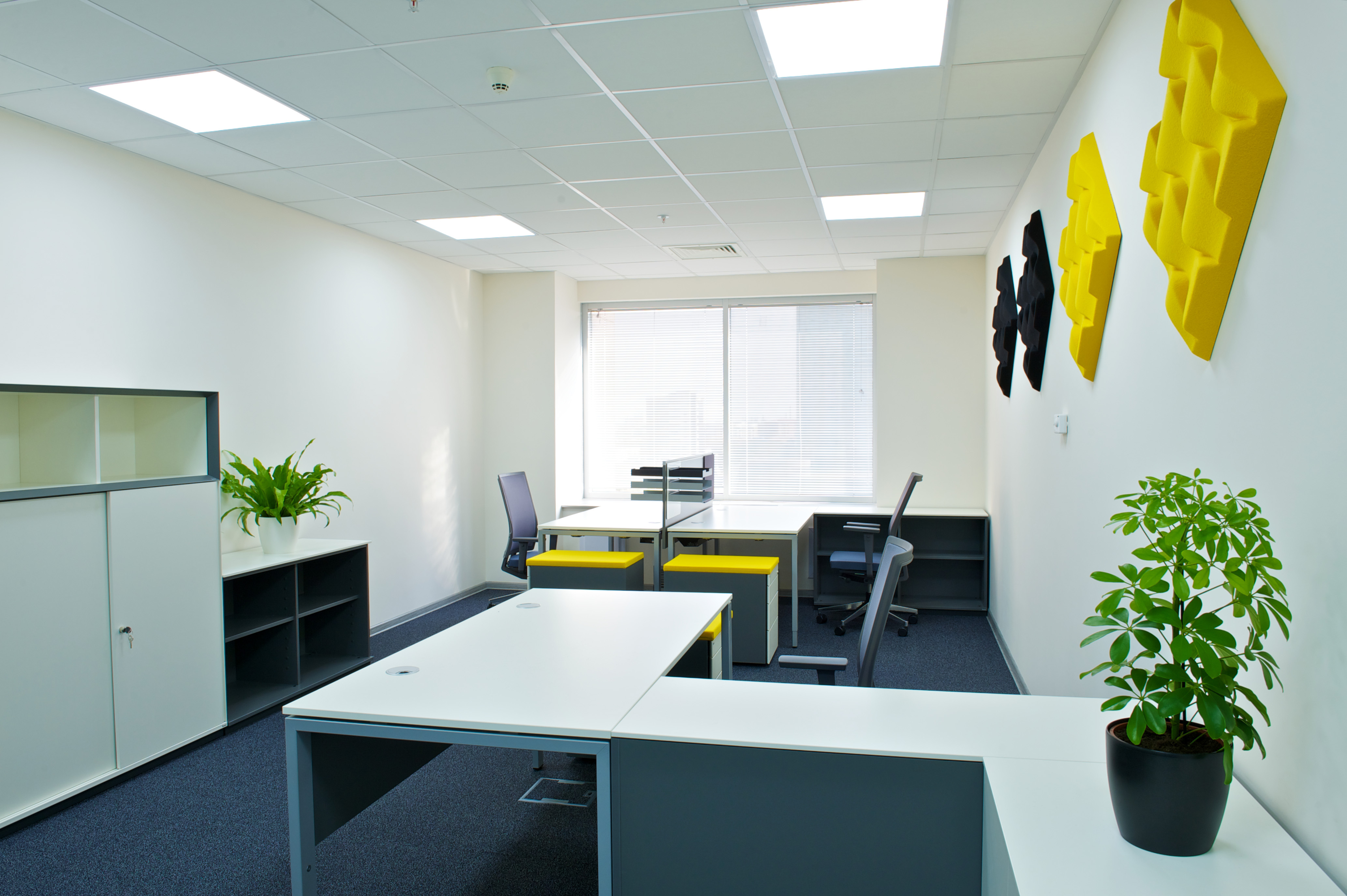

48 WATT SQUARE LIGHT FITTING

APPEARANCE

WATTAGE

48 watt

LUMENS

3500lm ~ 3800lm

DIMENSIONS

L595mm x W595mm x H9.5mm

Data Sheet

HOLE CUT-OUT

L610mm x W610mm
(recessed frame only)

SUITABLE AREA

16 ~ 20m2

COLOUR TEMPERATURE

5000k (cool white)

48 WATT RECTANGLE LIGHT FITTING

APPEARANCE

WATTAGE

48 watt

LUMENS

3500lm ~ 3800lm

DIMENSIONS

L1195mm x W295mm x H9.5mm

Data Sheet

HOLE CUT-OUT

L1210mm x W310mm
(recessed frame only)

SUITABLE AREA

16 ~ 20m2

COLOUR TEMPERATURE

5000k (cool white)

Solar Panel Kits

Redilight’s extra low voltage solar panels are available in a range of sizes to suit as many – or as few – energy efficient LED light fittings (known as a Skyfixture™) to achieve the perfect look.
The smaller 35 watt and 75 watt solar panels pack plenty of punch in a compact package for bespoke lighting solutions in hallways, bathrooms and more, while the larger 150 watt and 250 watt solar panels are powerful enough to handle the most demanding of lighting needs in open-planned areas such as offices, kitchens and living areas.

35 Watt Solar Panel Kit

The Redilight 35 watt Solar Panel Kit includes a high efficiency Multicrystalline PV panel which is mounted using either tile or metal roof bracket systems. The kit also includes 10m of DC Solar cable which is run from the Solar Panel down to the light fittings.

Redilight 35 Watt Solar Panel Data Sheet

Shop

75 watt solar panel

The Redilight 75watt Solar Panel Kit includes a high efficiency Multicrystalline PV panel which is mounted using either tile or metal roof bracket systems. The kit also includes 10m of DC Solar cable which is run from the Solar Panel down to the light fittings.

Redilight 75 Watt Solar Panel Data Sheet

Shop

150 watt solar panel

The Redilight 150w Solar Panel Kit includes a high efficiency Multicrystalline PV panel which is mounted on the roof using either tile or metal roof brackets. The kit includes a 5m length of 4mm2 Twin DC cable to enable a central location in the roof cavity for the termination of light feeds, a junction box is provided. There is also 20m of twin 1.84mm2 cable which is used to run from each light back to this junction box.

Redilight 150 Watt Solar Panel Data Sheet

Shop

250 watt solar panel

The Redilight 250w Solar Panel Kit includes a high efficiency Multicrystalline PV panel which is mounted on the roof using either tile or metal roof brackets. The kit includes a 5m length of 4mm2 Twin DC cable to enable a central location in the roof cavity for the termination of light feeds, a junction box is provided. There is also 20m of twin 1.84mm2 cable which is used to run from each light back to this junction box.

Redilight 250 Watt Solar Panel Data Sheet
